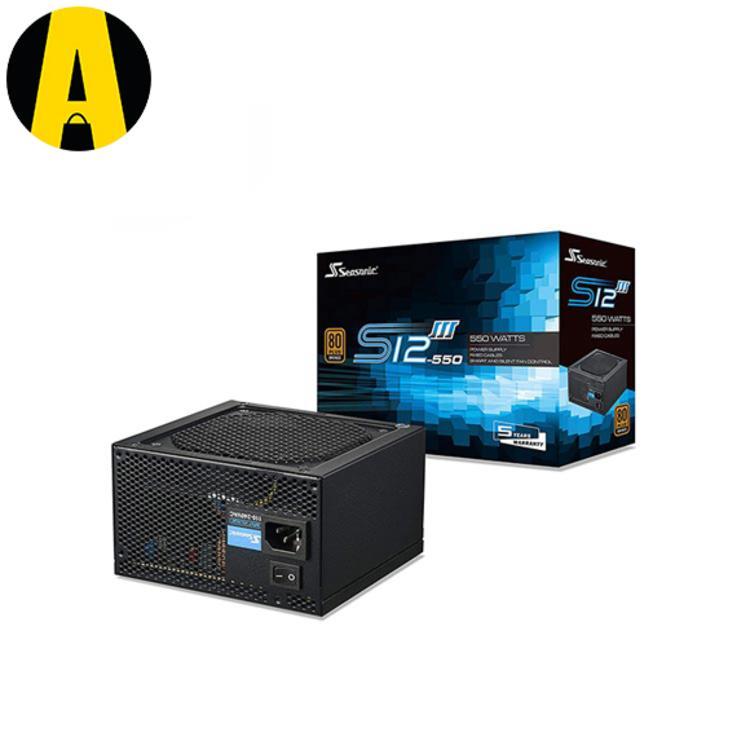

SeaSonic S12III Series 550W 80 Plus Bronze ATX Power Supply

Technical Specifications 80PLUS® Bronze Form Factor Intel ATX 12 V Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size 120 mm Fan Control Seasonic S2FC Fan Bearing Sleeve bearing Life Expectancy 30,000 hours at 40 °C, 15 % – 65 % RH Cable Information Modularity Fixed cable Cable type Flat black cables Electrical Features Operating Temperature 40 °C MTBF @ 25 °C, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick Environmental Compliance Energy Star, RoHS, WEEE, REACH Power Output AC Input Voltage: 110 V – 240 V Current: 10 A – 5 A Frequency: 50 Hz – 60 Hz DC Output Rail 3.3 V 5 V 12 V -12 V 5 VSB Maximum Power 20 A 20 A 54 A 0.3 A 2.5 A 100 W 648 W 3.6 W 12.5 W Total continuous power 650 W CABLES SSR-650GB3 Connector Connector Count Cable Length Main Power (24/20 pins) 1 1 x 550 mm – attached CPU (8/4 pins) 1 1 x 600 mm – 8/4 pins attached PCIe (8/6 pins) 4 2 x 550 150 mm – 8/6 pins attached SATA 6 2 x 450 120 120 mm – attached Peripheral 3 1 x 450 120 120 mm – attached Floppy 1 1 x 120 mm – end connector of the peripheral cable
