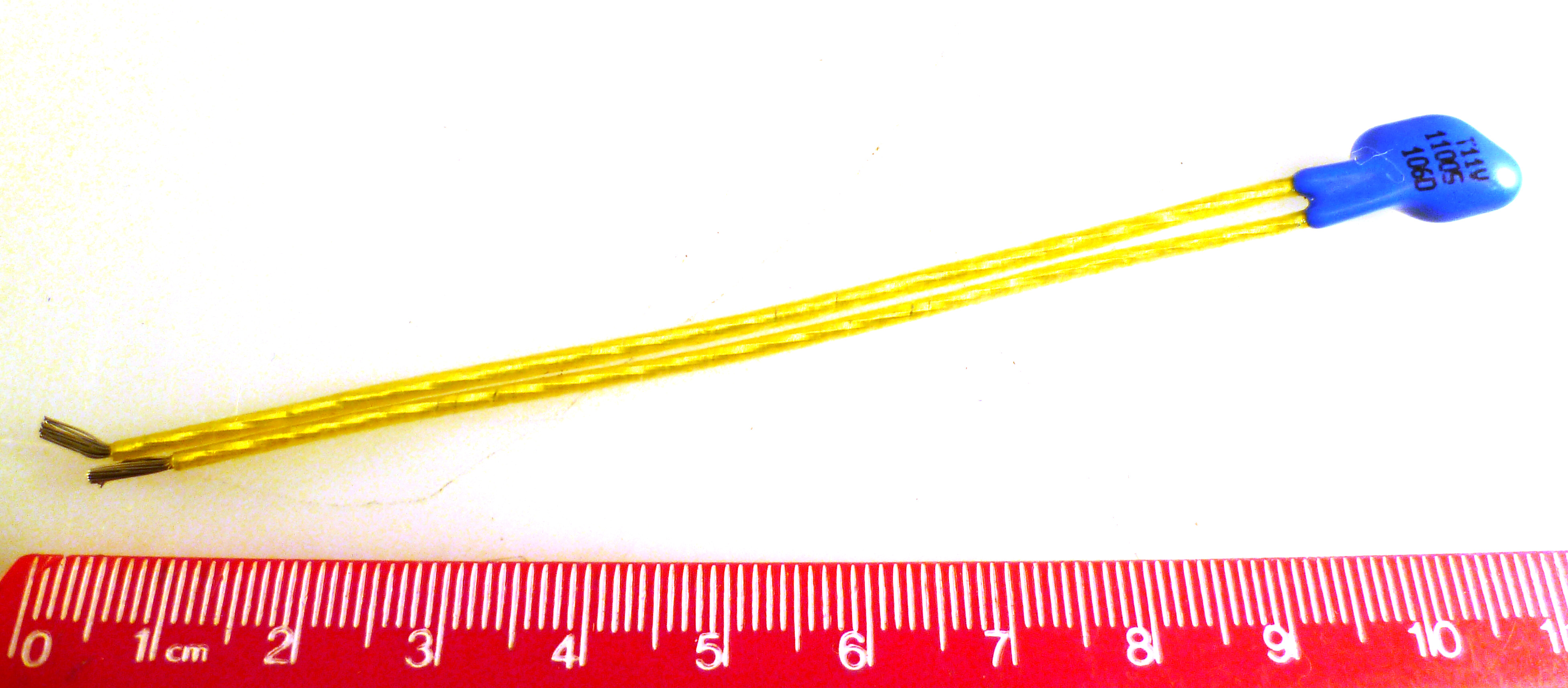

Microtherm T11V11005U200L520100 Thermal Cut Out Switch MBE003E

Description WE ARE RICH ELECTRONICS WE PURCHASE AND RECYCLE SURPLUS ELECTRONIC COMPONENTS AND EQUIPMENT! For sale here we have the above… Current Sensitive Thermal Protection for Coils/Windings Features THERMAL SWITCH Normally Closed 110°C Actuating Temperature Max:  110°C Contact Current Max:  2.5A Contact Resistance:  40mohm Contact Voltage AC Max:  250V External Depth:  6mm External Length / Height:  14mm External Width:  10mm Lead Length:  100mm Operating Temperature Max:  180°C Operating Temperature Min:  -30°C Series:  T11V Switch Operation:  On-Off Terminal Type:  Wire Leads Tolerance Temperature:  5°C DESCRIPTION These thermal cutouts operate by means of a thermally sensitive bimetal snap-element which switches a double electrical contact when reaching a pre-set response temperature. The contacts can be normally open or normally closed. The electrical current being switched flows through the bi-metal element, which therefore gives a combination of temperature-and current-sensitivity. Heat transfer occurs on all sides via convection, radiation or conduction in gaseous or solid media. The rhomboid base conducts heat directly onto the bi-metal element, allowing its use as a surface temperature cutout APPLICATIONS Thermal protection, and under certain circumstances, temperature control of electrical machinery and equipment. Examples: AC Motors Coils Oil Baths Single Phase Motors Electromagnets Water Boilers DC Motors Copiers Accumulators Generators Hot Air Dryers Liquid Pumps Transformers Electric Ranges Rectifiers Washing Machines Inverters PLEASE NOTE! These parts came to us as part of a lot of surplus stock from a large ‘Milspec ‘ type Co. and have been kept in storage for a time, they are however pristine,  stored with us still in their original packaging, the photographs are representative of their excellent condition, being of one of our actual stock, and, as with all our products they come with a full guarantee.  If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
