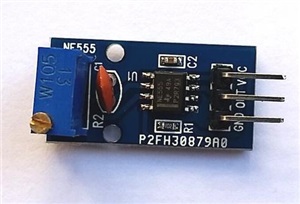

NE555 Adjustable Pulse Frequency Generator Module

The NE555 adjustable pulse frequency generator module is a device that can generate a pulse waveform with a variable frequency. It uses the NE555 timer IC, which is a versatile and widely-used IC that can be configured to produce a range of different pulse waveforms. The module typically includes an on-board potentiometer that can be used to adjust the frequency of the pulse waveform. The pulse waveform can be used for a variety of purposes, such as driving motors, flashing LEDs, and generating tones. The module can be controlled using a microcontroller or other device that sends signals to the module to start and stop the pulse waveform and adjust the frequency.   An adjustable frequency generator using the 555 Timer IC. Onboard NE555 IC Single channel signal output, with the output duty cycle about 50% square wave Plate load resistor: adjust the resistance to control the output frequency Onboard power led
