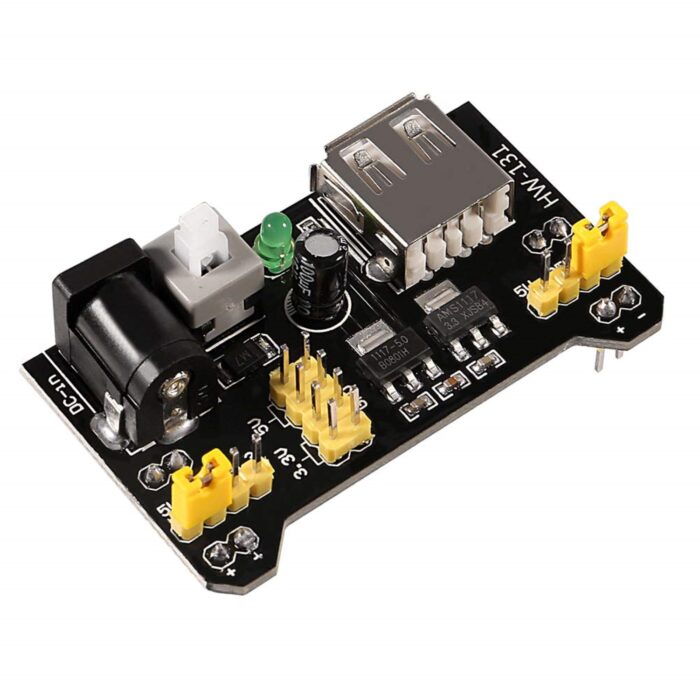

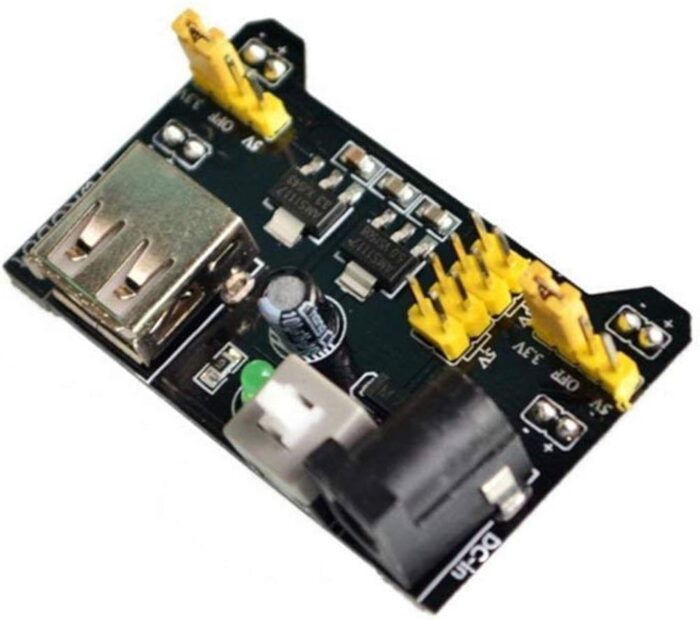

MB102 Breadboard Power Supply Module 3.3V/5V

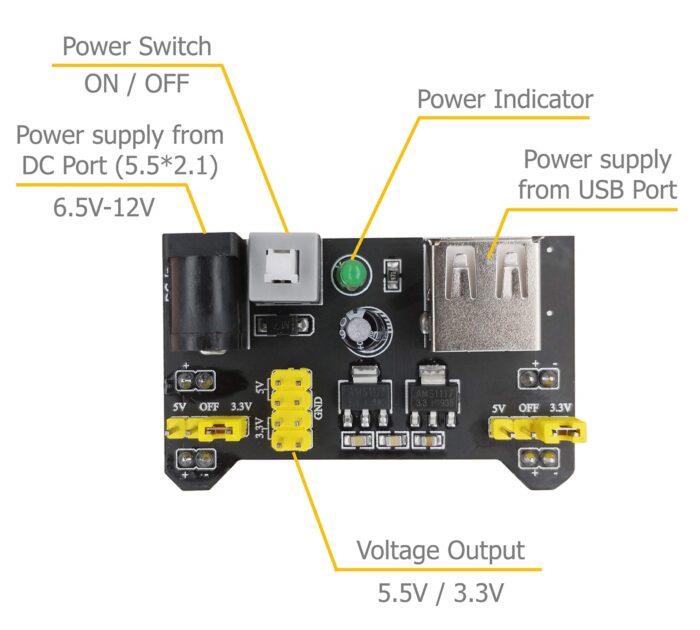

Use this power regulation module to provide 5V and 3V3 power supply to your breadboard based project.This power supply board is designed to plug into a Breadboard panel with 2 power Distribution strips. The module can be powered by a USB port or an external power supply 7-12V. The module has two independent power lines, which can be set to output voltage of 5V or 3.3V, or completely remove power from the line. The module has ON / OFF switch to turn on and off module. It comes with reverse polarity and short circuit protections, which greatly helps during building and testing circuits on the breadboard. Features:-   Designed to fit the standard MB102 bread board Power Supply comes with On/Off Switch Green LED power indication Built-in protection against short-circuit through power limiting circuitry compatible with 5V, 3.3V Input Voltage :6.5-12V (DC) or USB power Output voltage: 3.3V, 5V switchable Maximum Output Current: <700ma Two way independent control Output VoltageCan be switched to 0V, 3.3V, 5V On-board Two sets of 3.3V, 5V DC output pins, lets you connect directly to external circuits and to multiple breadboards. Dimension: 53 * 32 * 23 mm
