Adjustable Boost Regulator 4 to 25V Pololu

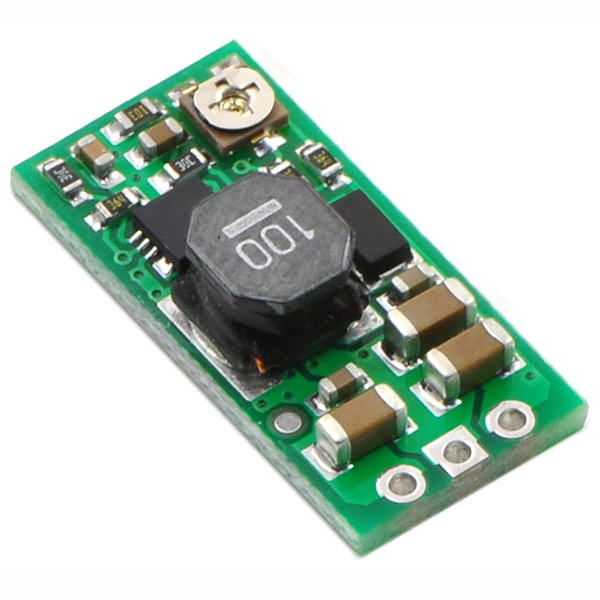

Description of Adjustable Boost Regulator 4 to 25V Pololu The Pololu adjustable boost regulator is a very flexible switching regulator (also called a switched-mode power supply, SMPS, or DC-to-DC converter) that can generate voltages higher than its input voltage. The  adjustable range is: approximately  4 V to 25 V. The output voltage can be set using the trimmer potentiometer in the upper-right corner of the board. The input voltage range is 1.5 V to 16 V (the input voltage should be kept below the output voltage). The integrated 2 A switch allows for output currents high enough to drive small motors, as in Pololu's 3pi robot, and allows large voltage gains, such as obtaining 24 V from two NiMH or NiCd cells. Some example applications include: Powering 5 V or 3.3 V systems from lower-voltage batteries Powering 5 V subsystems (e.g. sensors) in lower-voltage (e.g. 3.3 V) systems Achieving consistent actuator operation when powered by fluctuating batteries Powering high-brightness LEDs or a large number of LEDs in series Click here to know more about this product.
