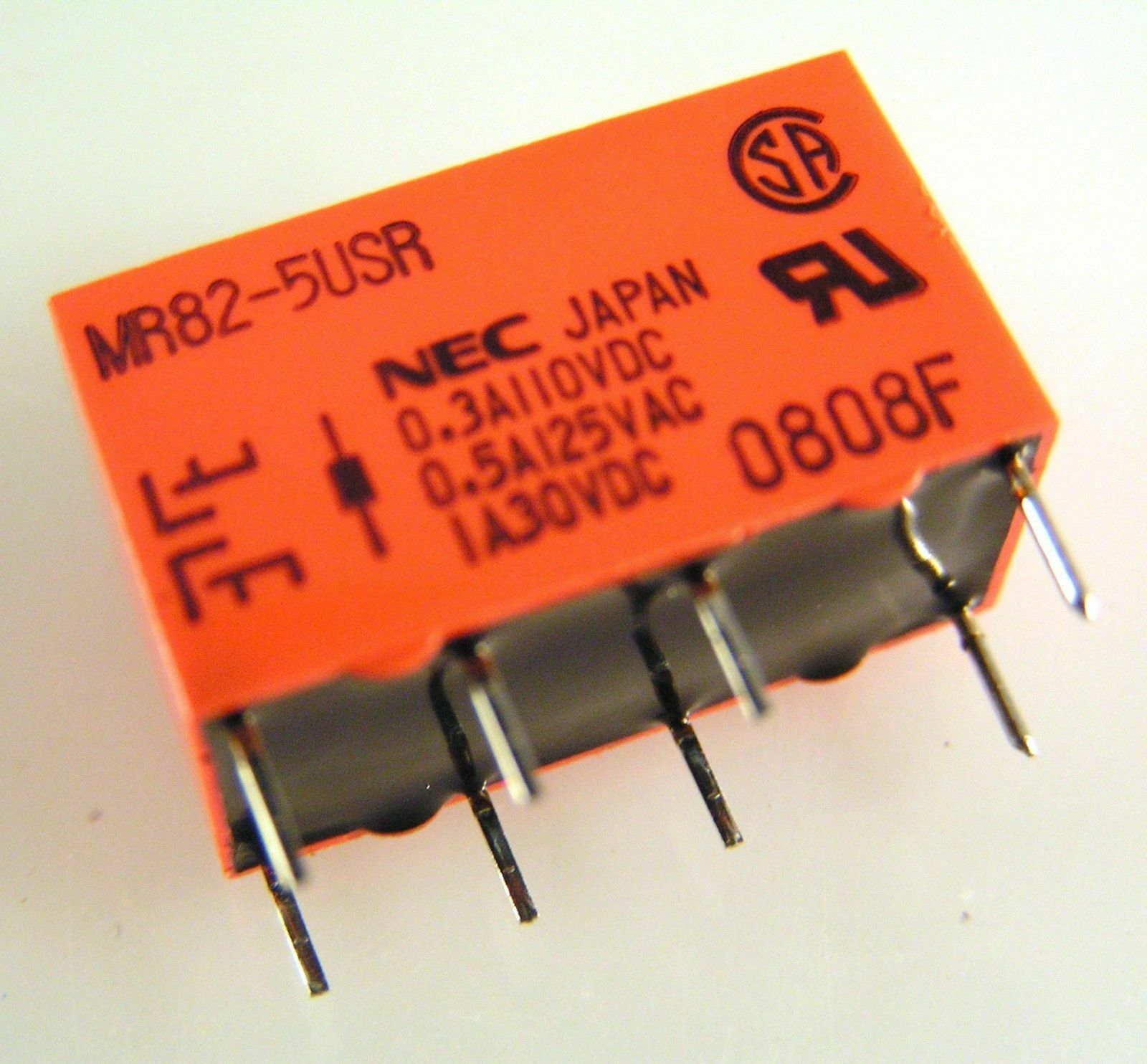

NEC MR82-5USR DIL Relay PCB Mount 5VDC Coil 1A 30VDC DPCO OLA1-07

Description WE ARE RICH ELECTRONICS WE PURCHASE AND RECYCLE SURPLUS ELECTRONIC COMPONENTS AND EQUIPMENT! For sale here we have the above… 1 Piece DPCO – Double Pole Change Over Stored with us bulk packed in tubes of 25 Part no. MR82-5USR RELAY, DPCO, 5VDC DIL package Fully sealed for immersion cleaning Bifurcated crossbar contacts for high reliability High sensitivity coil (200mW) UL/CSA recognised Coil Voltage VDC Nom: 5V Coil Resistance: 125ohm External Width: 20.2mm External Depth: 9.8mm Contact Configuration: DPCO Contact Current AC Max: 2A Contact Current DC Max: 2A Contact Voltage AC Max: 250V Contact Voltage DC Max: 220V External Length / Height:11.4mm Mounting Type: PCB No. of Poles: 2 Operating Temperature Max:85°C Operating Temperature Min:-40°C Series: MR82 Approval Bodies: UL, CSA Coil Operating Lower Percent Limit: 80% Coil Operating Upper Percent Limit: 125% Contact Material: Silver alloy Gold overlay Contact Plating: Gold DC Coil Power: 200mW Operating Time: 5.5ms Release Time: 2ms Switch Current Max: 2A Switching Power Max: 60W Product Category: Low Signal Relays – PCB Contact Form: 2 Form C (DPDT-BM) Coil Type: Non-Latching Termination Style: PCB Pins Factory Pack Quantity: 25 For full NEC data sheet search…MR82-5USR Or go to… https://www.relayspec.com/catalogs/031220/2009/mr82.pdf PLEASE NOTE! These parts came to us as part of a lot of surplus stock from a large distribution Co. and have been kept in storage for some time, we have therefore classified them as ‘new other’. They are however pristine, stored with us still in their original packaging and ‘as new’ in all respects, the photographs are representative of their excellent condition, and, as with all our products they come with a full guarantee.  If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
