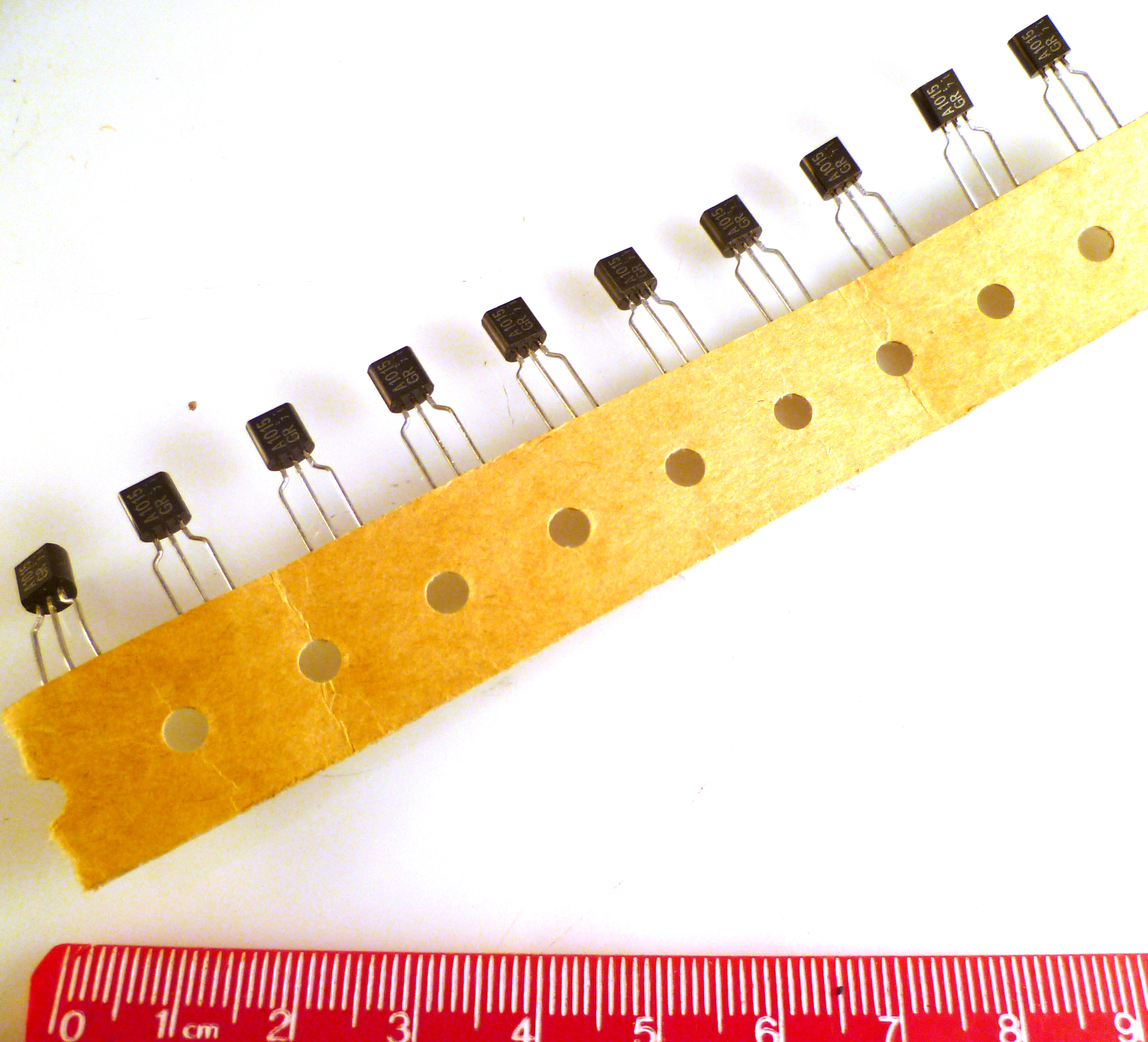

Toshiba 2SA1015 PNP Low Noise Small Signal Transistor 10 Pieces OM0012B

Description Genuine Toshiba parts! TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1015 Audio Frequency General Purpose Amplifier Applications Driver Stage Amplifier Applications High voltage and high current: VCEO = −50 V (min), IC = −150 mA (max) Excellent hFE linearity : hFE (2) = 80 (typ.) at VCE = −6 V, IC = −150 mA : hFE (IC = −0.1 mA)/hFE (IC = −2 mA) = 0.95 (typ.) Low noise: NF = 1dB (typ.) (f = 1 kHz) Complementary to 2SC1815.  10 Pieces Brand: TOSHIBA Configuration: Single Transistor Polarity: PNP Collector- Base Voltage VCBO: -50V Collector- Emitter Voltage VCEO: -50V Emitter- Base Voltage VEBO: -5V Collector-Emitter Saturation Voltage: -0.3V Collector Current: -150mA Gain Bandwidth Product fT: 80MHz Maximum Operating Temperature: 125’C Mounting Style: Through Hole Package/Case: TO-92 Gain hFE: 200 – 400 Collector Power Dissipation: 400mW Minimum Operating Temperature: – 55’C Series: 2SA1015 (GR) For datasheet copy and paste:-  https://xtronics.com/uploads/2SA1015.pdf
