RFID NFC MUX ANT1356-50×50

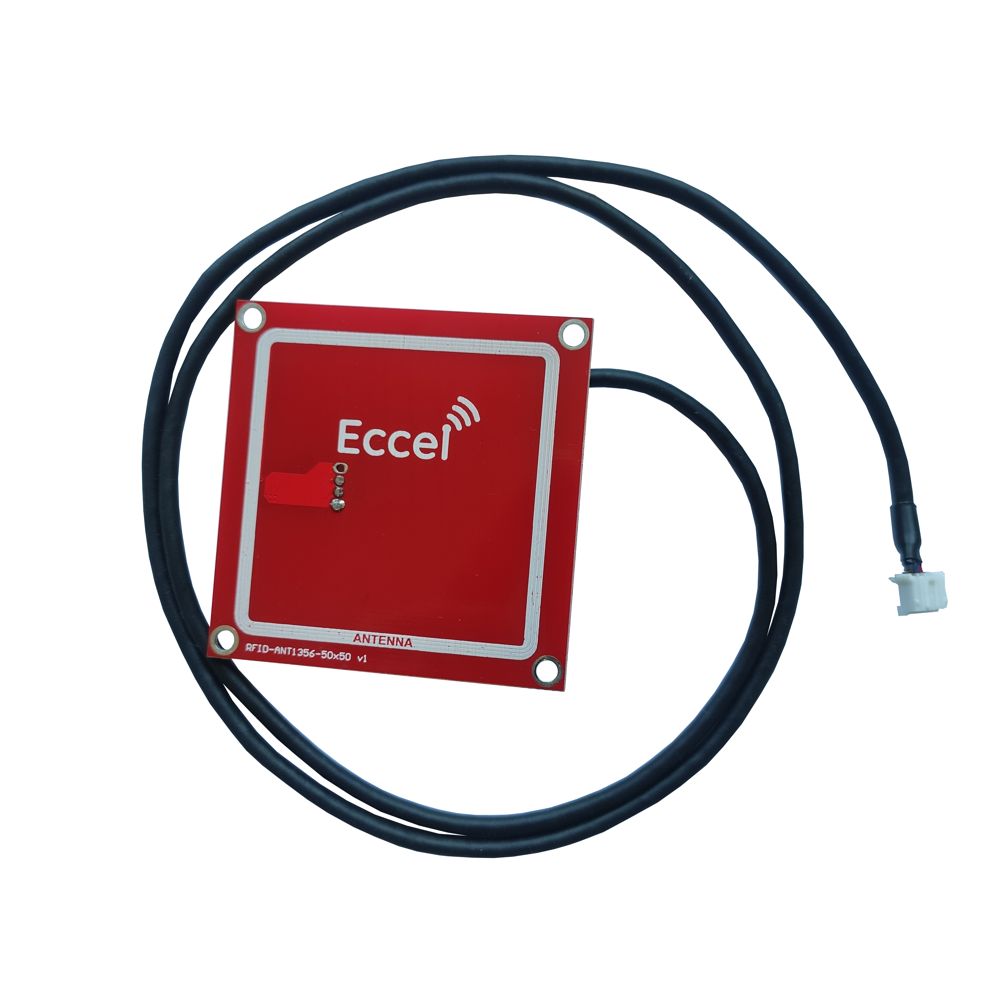

MUX ANT1356 50×50-800 is one of a family of PCB antennas designed for use with the Pepper C1 MUX RFID reader. Antenna dimensions 50 x 50mm. PCB dimensions 60 x 60mm. Cable length of 300, 800, 3000 or 4000mm with 3-pin connector. PCB antenna products can be customized as per application requirements. Parameters such as the dimensions or shape of the coil or its inductance can be altered. We can offer PCBs in green, red, yellow, blue, white, black, purple, matte black and matte green. Antennas are provided with 2 -conductor shielded cable, in lengths of 300, 800, 3000 and 4000 mm, and terminated with a 3-pin connector JST PHR-3 (RS Stock No. 820-1475). The MUX ANT1356-50×50-800 can achieve about 7cm of read range with the standard MIFARE Classic® 1K ISO card. If product is out of stock, our estimated lead time to fulfil a back order is 6-8 weeks.
