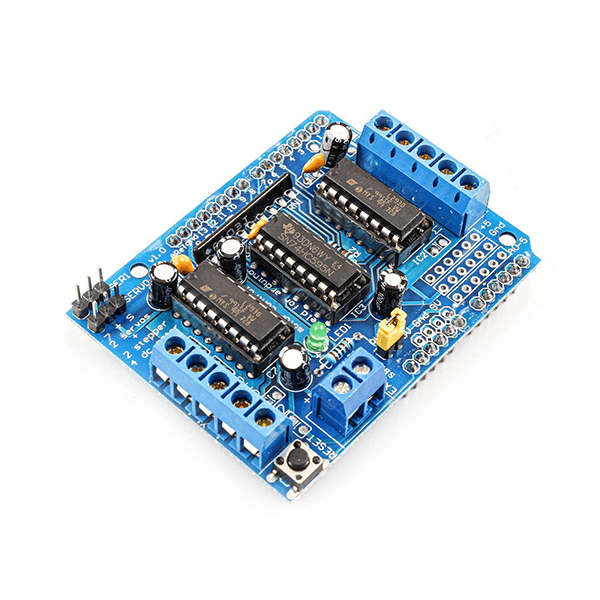

Motor Driver Shield L293D

DescriptionDescription  This Adruino compatible motor Driver shield is a full-featured products that it can be used to drive 4 DC motor or two 4-wire stepper and two 5v servo. It drive the DC motor and stepper with the L293D,and it drive the servo with arduino pin9 and pin10. 2 connections for RC servos connected to the Arduino’s high-resolution dedicated timer – no jitter!4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.Up to 4 bi-directional DC motors with individual 8-bit speed selectionUp to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.Pull down resistors keep motors disabled during power-upBig terminal block connectors to easily hook up wires (18-26AWG) and powerArduino reset button brought up top2-pin terminal block and jumper to connect external power, for separate logic/motor suppliesTested compatible with Arduino Mega, and UNO
