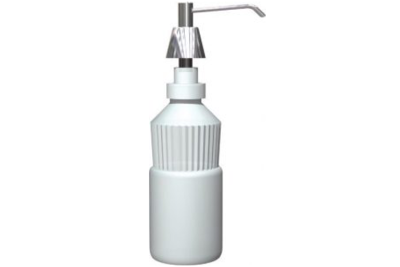

ASI 0332 – Lavatory Mounted Soap Dispenser – 34 oz.

ASI 0332  MANUAL PUMP Soap Dispenser – Lavatory Mounted Soap is manually dispensed by pushing down on the spout stem.Dispenser is refilled by using the special refill key to unlock the escutcheon and remove the valve body with dip tube from the shank to expose reservoir opening. SpecificationsLavatory Mounted Soap Dispenser shall dispense 34 oz. (1.0 liter) of liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan. Dispenser stem and 4″ spout shall be stainless steel with rubber “duck bill” check valves and an O-ring seal. Valve body, internal parts, basin nut, threaded shank and globe adapter shall be molded plastic. Spring, escutcheon washer, stem retainer collar and screw shall be stainless steel. Escutcheon shall be chrome plated brass. Soap container shall be translucent, shatter resistant polyethylene. Vandal-resistant spout shall rotate 360° without damage to unit. Valve operation shall comply with ADA Accessibility Guidelines by requiring no more than 5 lb sf (22.2 Newtons) of pressure to actuate without grasping or twisting by operator. Cover MaterialSpout above Lavatory is Stainless SteelActivationManually Dispensed by pushing downCanister TypeBulk FillDispense TypeLiquidCapacity34 oz.Unit DimensionsSpout is 4″ Above CounterUnit Weight4.0 lbs.Ship Dimensions4″ Wide x 11″ Tall
