ASI 20333 – Automatic Soap Dispenser – Stainless Steel

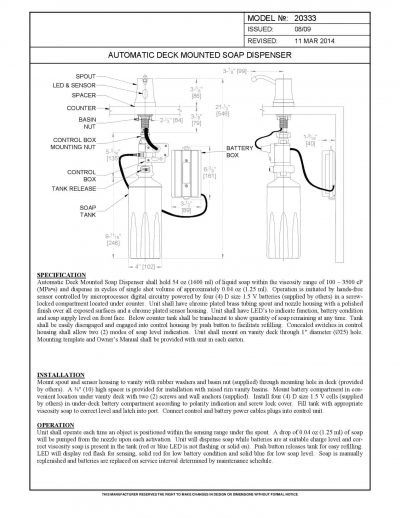

ASI ROVAL 20333  AUTOMATIC Soap Dispenser – Counter Mounted INCLUDES all parts show in above 2 picturesSpoutBasin NutControl BoxSoap TankBattery Box  Battery Operated Automatic Soap DispenserStainless Steel FinishLarge capacity soap dispenser SpecificationsAutomatic Deck Mounted Soap Dispenser shall hold 54 oz (1600 ml) of liquid soap within the viscosity range of 100 – 3500 cP (MPa•s) and dispense in cycles of single shot volume of approximately 0.04 oz (1.25 ml). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry powered by four (4) D size 1.5 V batteries (supplied by others) in a screw-locked compartment located under counter. Unit shall have chrome plated brass tubing spout and nozzle housing with a polished finish over all exposed surfaces and a chrome plated sensor housing. Unit shall have LED’s to indicate function, battery condition and soap supply level on front face. Below counter tank shall be translucent to show quantity of soap remaining at any time. Tank shall be easily disengaged and engaged into control housing by push button to facilitate refilling. Concealed switches in control housing shall allow two (2) modes of soap level indication. Unit shall mount on vanity deck through 1″ diameter (Ø25) hole. Mounting template and Owner’s Manual shall be provided with unit in each carton. Cover Material304 Type Stainless SteelActivationAutomatic – Hands FreeCanister TypeBulk FillDispense TypeSoap or Hand SanitizerCapacity54 oz.Unit DimensionsSpout is 4″ Above CounterUnit Weight4.0 lbs.Ship Dimensions5″ Wide x 18″ Tall x 5″ DeepShip Weight4.0 lbs.
